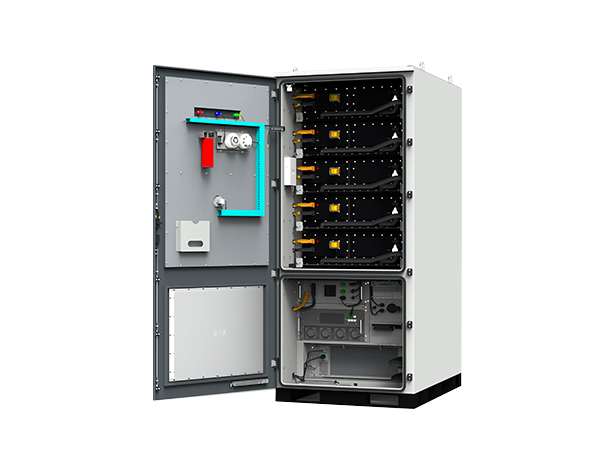

125kW/261kWh energy storage grid connected system

Product Introduction

125kW/261kWh

Battery Cell Model

314Ah

Serial parallel method

1P260S

Rated charging and discharging power

0.5C

rated voltage

832V

rated energy

261.248kWh

IP rating

IP54

size

1000*1350*2280mm

weight

2400kg

System Demonstration

Product Features

safe and controllable

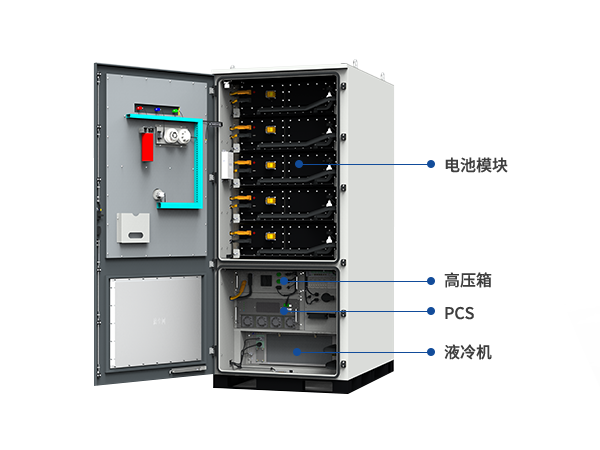

Standard cabinet design, partition isolation, ultimate liquid cooling temperature control technology+combustible gas detection and perfluorohexane fire protection technology ensure system safety and controllability.
cost-effective

Single string design, zero parallel capacitance loss; PCS high-efficiency three-level topology maximizes system conversion efficiency.
intelligent management

Embedded anti backflow, peak shaving and valley filling, demand control and other strategies; The operational data can be connected to the backend through the network to achieve cloud monitoring.
convenient and efficient

Can be designed in master-slave mode, supporting multiple parallel operations; Plug and play turnkey solution.
