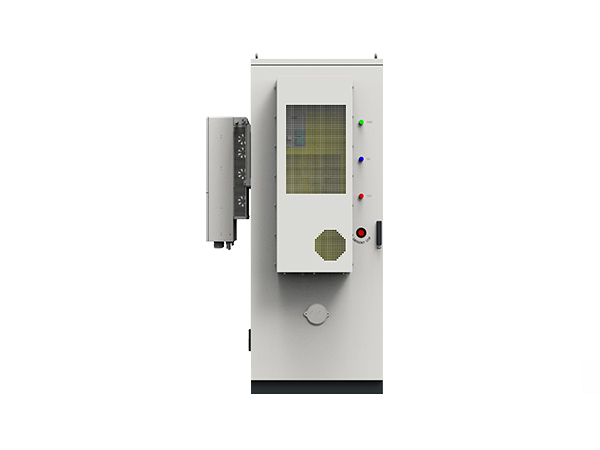

Integrated Light Storage System - Integrated Light Storage Power

Product Introduction

30kW/96kWh丨50kW/112kWh

Battery Cell Model

314Ah

Serial parallel method

1P96S丨1P112S

Rated charging and discharging power

0.5P

rated voltage

307.2V丨358.4V

rated energy

96.4kWh丨112.5kWh

IP rating

IP55

size

1235*1220*2280mm

weight

1235kg丨1350kg

System Demonstration

Product Features

safe and controllable

The cabinet can adapt to harsh environments, and the smoke/temperature detection device and aerosol fire protection technology inside the cabinet ensure the safety and controllability of the system.
cost-effective

One cluster, one management, zero parallel capacity loss; Intelligent thermal management control algorithm effectively increases system conversion efficiency.
intelligent management

The output voltage level, control strategy, etc. can be configured according to requirements.
convenient and efficient

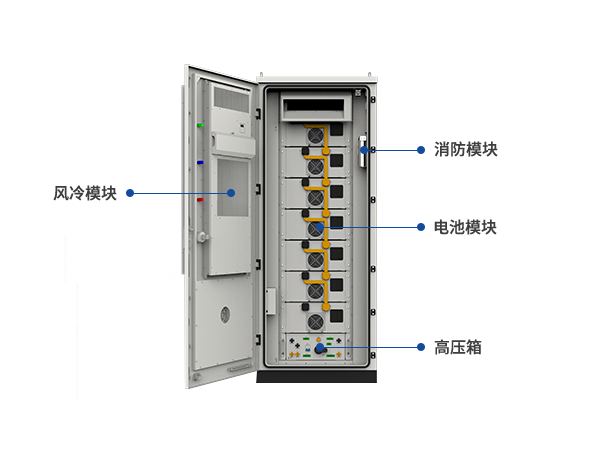

Modular functionality for easy installation and maintenance; DC/AC split design, convenient for AC/DC parallel expansion.
